Seamless Boiler Tube
Pipe Type: Boiler Seamless Tube, Seamless Boiler Tube, Boiler Pipe Application: For High-pressure Fluids Transmission (boiler, heat exchanger, condenser) Specification: OD: 0.84” ~ 28” (21.3 ~ 711mm) WT: 0.091” ~ 1.575” (2.3 ~ 40mm) LENGTH: Fixed Length (5.8/6/11.8/12 mtr), SRL, DRL
marketing@gicgroup.co.za
Email:
+27 82 498 4549
Whatsapp:
PRODUCT DESCRIPTION
Product introduction

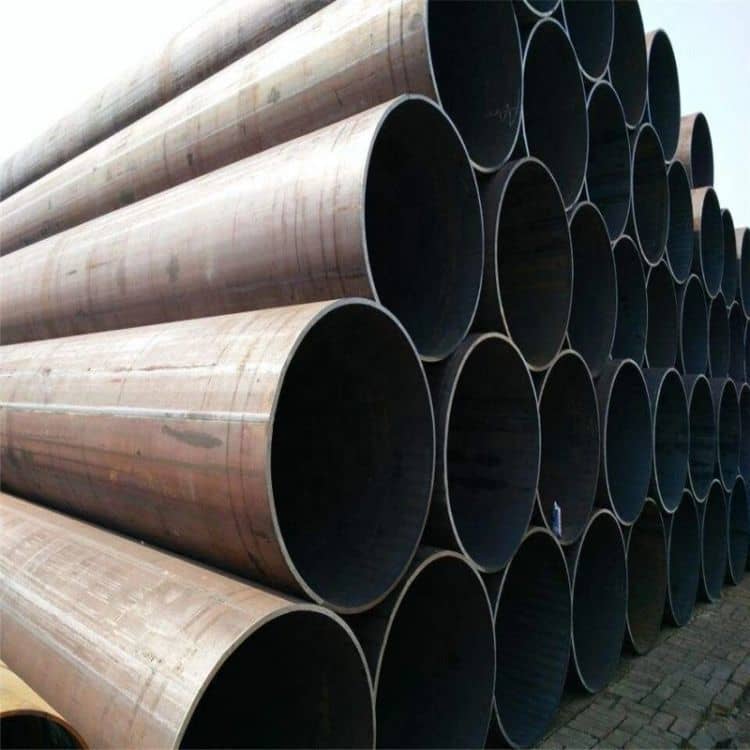

Boiler Tube
Pipe Type: Boiler Seamless Tube, Seamless Boiler Tube, Boiler Pipe
Application: For High-pressure Fluids Transmission (boiler, heat exchanger, condenser)
Specification: OD: 0.84” ~ 28” (21.3 ~ 711mm)
WT: 0.091” ~ 1.575” (2.3 ~ 40mm)
LENGTH: Fixed Length (5.8/6/11.8/12 mtr), SRL, DRL
Standard: ASTM A179, ASTM A192, ASTM A210
Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Specification of Boiler Tube
| SPECIFICATION OF BOILER TUBES | |||||||
| OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT | OD*WT |
| 14*3 | 38*5,5 | 89*5 | 133*18 | 34*5 | 76*6 | 133*7 | 219*7 |
| 14*3,5 | 42*3 | 89*5,5 | 159*6 | 34*6,5 | 76*7 | 133*8 | 219*8 |
| 14*4 | 42*3,5 | 89*6 | 159*6,5 | 38*3 | 76*8 | 133*10 | 219*9 |
| 16*3 | 42*4 | 89*7 | 159*7 | 38*3,5 | 76*9 | 133*12 | 219*10 |
| 18*2 | 42*5 | 89*7,5 | 159*8 | 38*4 | 76*10 | 133*13 | 219*12 |
| 18*3 | 42*6 | 89*8 | 159*9,5 | 38*4,5 | 89*4 | 133*14 | 219*13 |
| 18*4 | 42*8 | 89*9 | 159*10 | 38*5 | 89*4,5 | 133*16 | 219*14 |
| 18*5 | 45*3 | 89*10 | 159*12 | 219*16 | 273*36 | 356*28 | 426*12 |
| 19*2 | 45*4 | 89*11 | 159*14 | 219*18 | 273*40 | 356*36 | 426*13 |
| 21*4 | 45*5 | 89*12 | 159*16 | 219*20 | 273*42 | 377*9 | 426*14 |
| 22*2,5 | 45*6 | 108*4,5 | 159*18 | 219*22 | 273*45 | 377*10 | 426*17 |
| 22*3 | 45*7 | 108*5 | 159*20 | 219*24 | 298,5*36 | 377*12 | 426*20 |
| 22*4 | 48*4 | 108*6 | 159*28 | 219*25 | 325*8 | 377*14 | 426*22 |
| 22*5 | 48*4,5 | 108*7 | 168*6 | 219*26 | 325*9 | 377*15 | 426*30 |
| 25*2,5 | 48*5 | 108*8 | 168*7 | 219*28 | 325*10 | 377*16 | 426*36 |
| 25*3 | 48*6 | 108*9 | 168*8 | 219*30 | 325*11 | 377*18 | 426*40 |
| 25*4 | 48*7 | 108*10 | 168*9,5 | 219*32 | 325*12 | 377*20 | 426*50 |
| 25*5 | 48,3*12,5 | 108*12 | 168*10 | 219*35 | 325*13 | 377*22 | 457*9,5 |
| 25*5,5 | 51*3 | 108*14 | 168*11 | 219*38 | 325*14 | 377*25 | 457*14 |
| 27*3,5 | 51*3,5 | 108*15 | 168*12 | 273*7 | 325*15 | 377*32 | 457*16 |
| 27*4 | 51*4 | 108*16 | 168*14 | 273*8 | 325*16 | 377*36 | 457*19 |
| 27*5 | 51*5 | 108*20 | 168*15 | 273*9 | 325*17 | 377*40 | 457*24 |
| 27*5,5 | 51*6 | 114*5 | 168*16 | 273*9,5 | 325*18 | 377*45 | 457*65 |
| 28*2,5 | 57*4 | 114*6 | 168*18 | 273*10 | 325*20 | 377*50 | 508*13 |
| 28*3 | 57*5 | 114*7 | 168*20 | 273*11 | 325*22 | 406*9,5 | 508*16 |
| 28*3,5 | 57*5,5 | 114*8 | 168*22 | 273*12 | 325*23 | 406*11 | 508*20 |
| 28*4 | 57*6 | 114*8,5 | 168*25 | 273*13 | 325*25 | 406*13 | 508*22 |
| 30*2,5 | 60*4 | 114*9 | 168*28 | 273*15 | 325*28 | 406*17 | 558,8*14 |
| 32*2,5 | 60*4 | 114*10 | 180*10 | 273*16 | 325*30 | 406*22 | 530*13 |
| 32*3 | 60*5 | 114*11 | 194*10 | 273*18 | 325*32 | 406*32 | 530*20 |
| 32*3,5 | 60*6 | 114*12 | 194*12 | 273*20 | 325*36 | 406*36 | 570*12,5 |
| 32*4 | 60*7 | 114*13 | 194*14 | 273*22 | 325*40 | 406*40 | 610*13 |
| 32*4,5 | 60*8 | 114*14 | 194*16 | 273*25 | 325*45 | 406*55 | 610*18 |
| 32*5 | 60*9 | 114*16 | 194*18 | 273*28 | 356*9,5 | 406,4*50 | 610*78 |
| 34*3 | 60*10 | 114*18 | 194*20 | 273*30 | 356*12 | 406,4*55 | 624*14,2 |
| 34*4 | 76*4,5 | 133*5 | 194*26 | 273*32 | 356*15 | 406*60 | 824*16,5 |
| 34*4,5 | 76*5 | 133*6 | 219*6,5 | 273*35 | 356*19 | ||
Technical data
Tolerance
| Standard | Out Diameter | Tolerance |
| GB3087 | ≤180 | ±1.0%(min: ±0.5mm) |
| GB5310 | ≤50 | ±0.5mm |
| >50 | ±1.0% |
Chemical Composition & Mechanical Properties
| Standard | Grade | Chemical composition(%) | Mechanical properties | ||||||
| C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||
| DIN17175 | St35.8 | ≤0.17 | 0.10-0.35 | 0.40-0.80 | ≤0.030 | ≤0.030 | 360-480 | ≥235 | ≥25 |
| St45.8 | ≤0.21 | 0.10-0.35 | 0.40-1.20 | ≤0.030 | ≤0.030 | 410-530 | ≥255 | ≥21 | |
Packing and shipping
The company has domestic first-class professional technical consultants and a team of outstanding employees with professional skills. The main products are carbon steel/galvanized steel. Stainless steel/steel coil steel bars, galvalume, color-coated coils, profiles, steel bars, aluminum products, roof panels. Products are sold to more than 60 countries and regions in Europe, the Middle East, Southeast Asia, and Australia.

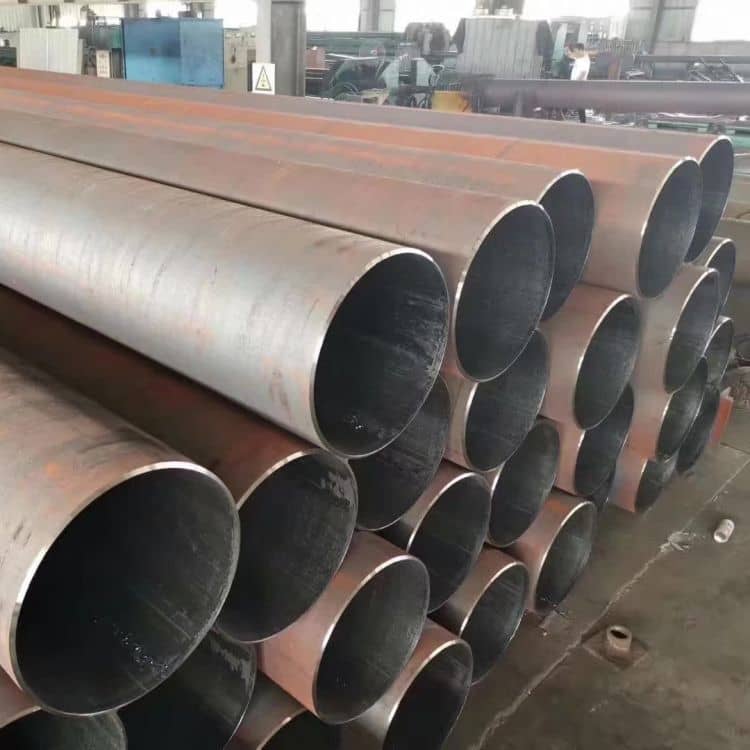

FACTORY APPEARANCE
Company As 20000 Square Meters Of Indoor Storage more Than 20,000 Tons Of Inventory, Spot Product Standard Involves European Standard American Standard British Standard Australian Standard German Standard, Now According To Customer Requirements For Product Opening Strip.Cutting.Processing.Annual sales of more than 60 milliontons.Our company owns the firs class professional technique adviser in China and the excellent staffs with professional technology.The main products are carbon steel / galvanized.
PRODUCT DESCRIPTION
We promise”complete specifications, prompt delivery, high quality, competitive price, “The unwavering supports you provide, along with the increasing requirements you put contributes to more varied high-quality products with more competitive prices we offer.Win-win situations are always our pursuit.
OUR ADVANTAGE
We have won recognition from our clients due to our good creditand good services.
